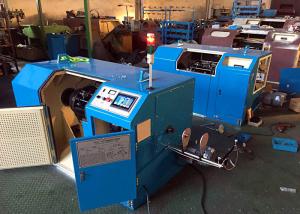

200DTB Automatic Double Twist Cable Buncher High Rotation Speed For Super Fine Wire

Name: 200DTB Automatic Double Twist Cable Buncher High Rotation Speed For Super Fine Wire
Brand: Newlead
Price: 1 USD

China 200DTB Automatic Double Twist Cable Buncher High Rotation Speed For Super Fine Wire factory

Place of Origin : Wuxi Jiangsu China

Brand Name : Newlead

Model Number : 200DTB

Price : Negotiation

MOQ : 1 Set/Sets

Certification : ISO CE

Supply Ability : 20 sets in 70 days

Delivery Time : 80 days

Packaging Details : wooden pallet

Usage : Twisting

Name : 200DTB bunching machine

Power : 2.2 KW motor and 2.2 KW inverter

Max. roatating speed(RPM) : 3000/4000RPM(6000 twist/min)

To wire diameter : 0.016-0.08mm

Stranding section area(mm2) : 0.0014-0.035mm2

Contact Now

200DTB Automatic Double Twist High Speed Wire Bunching Machine for super fine wire

Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior

quality for twist wire,it can realize bunching instead of twisting to match up 1OO active back-twist pay-offmachine.And meet requirements of customer to twist wire of small section area. The machine is driven bysynchronization strap. Only need to change capstan wheel to change the pitch. Easy to operate.

Item	200DTB	300DTB
Voltage	380V (or according to customer’s requirement)
Power	5HP motor + 5HP inverter	7.5HP motor+7.5HP inverters
Twisting distance(mm)	0.51-6.56	1.52-16.73 customized
Twisting direction	Freedom of choice to left or right
Take-up bobbin	Ф70-Ф200	Ф200-Ф300
Max speed(RPM)	6000(or 5000)	4000(or3000)
Stranding	Suitable for above 7 extremely fine copper wire stranding	Suitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
Stranding sec. Area(mm2)	0.00178-0.086	0.0137-0.418
Tension control	Magnetic particle automatic tracking	Manual adjustment or magnetic particle auto tracking
Traversing unit	Feed rod, traversing/distance adjustable
Brake	Electromagnetic brake
Cut wire control	In or out cut wire auto brake
Stranding OD(mm)	0.018-0.035	0.05-0.12
Up and down axis	Manual take-up	Manual, electric oil-pressure or mechanical auto up and down
Noise level(db)	About 78db	About 78db
Paint	Apple green (or according to customer’s requirement)
Dimension	2100Lx800Wx900xH	2300Lx900Wx1050xH
Oiling	Import auto oiling system, auto enforce oiling	Manual or import auto oiling system, auto enforce oiling

Our Services

Pre-sale training:

In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
1)Correct operating mode
2)Correct maintenance way
3)Remove simple problem of our product

After-sale maintenance service is:

1,Both mechanical and electrical parts are provided 1 years limited warranty.
2,Manufacturing experience with more than 20years
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.

Advantages

1.Over 20 years professional experience.

2.CE,ISO,AAA manufacturer,gold supplier certificate.

3.Machinery are used in over 20 countries,such as India,Egypt,Philippines,Malaysia,Hong Kong,Pakistain,Korea,USA,Germany ect.

4.Has strong technical support,including 3 senior enigneers,8 enigneers and 100 skilled workers.

5.Together with its partners,Newlead develops production systems which address all of the needs and preference of wire and cable manufacturers.

6.To offer our customers workshop design.

7.Choose a professional supplier will bring you more convenient.
